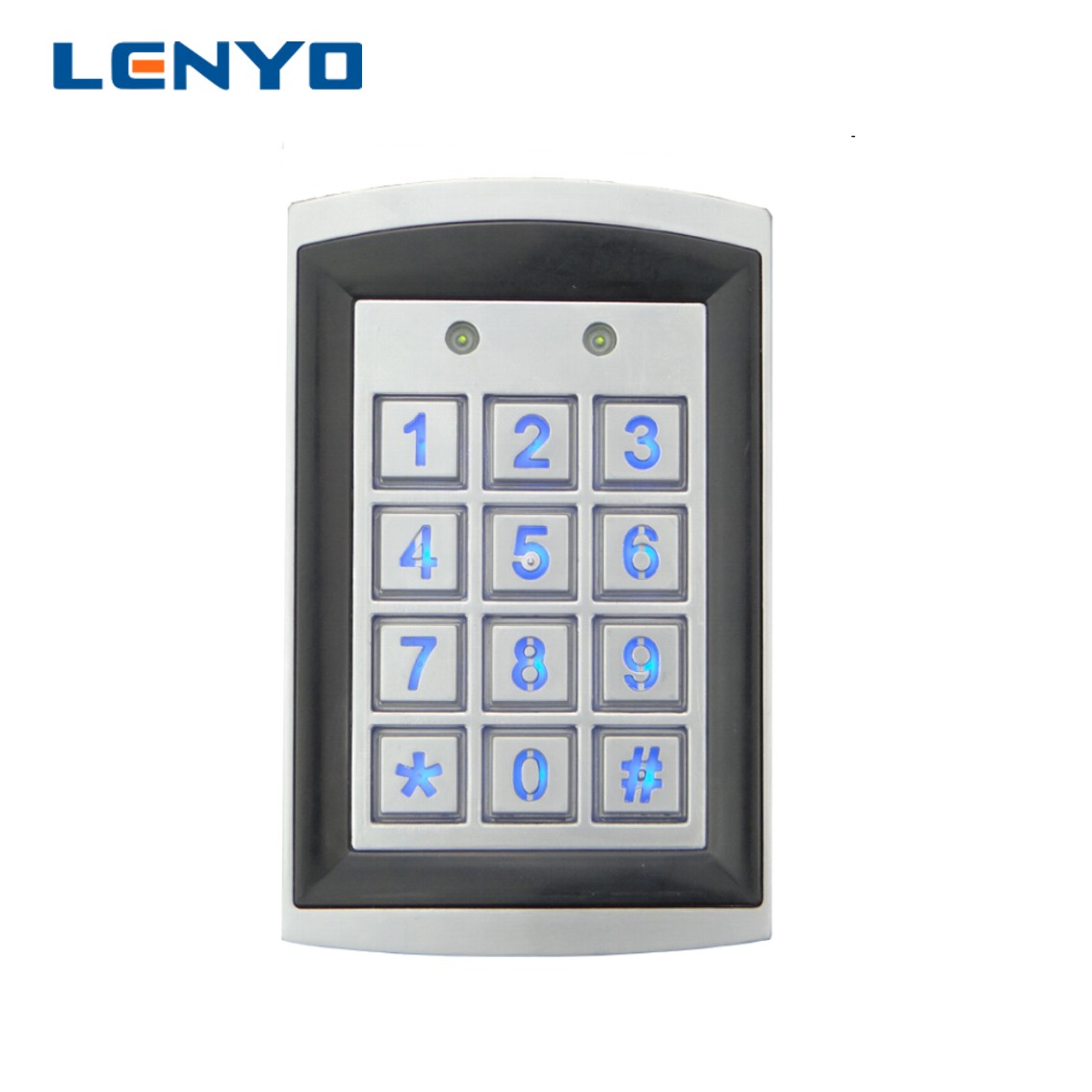

AC230SADK
Views：
More Images：
Details：
A. Epoxy sealed
B. Vandal resistant
C. Die-cast zinc alloy
D. Frequency: EM125KHz
E. 2-6 digits pins access
F. 12 digits backlight keypad
G. Operation Voltage: 12~24 VAC or VDC
H. 2 relays output NO /COM/NC and isolate peaker output.
I. Strike time: 0 to 99 seconds
J. Capacity: Zone1, 1000 codes or cards, or combined
Zone2, 10 codes or cards, or combined
K. 2 LED indicators: Green, Red
L. Operation temperature: -30 degree to 70 degree
M. Installation: Surface mounted
N. Cable length: 1 meter ---14-wire for stand-alone, 16-wire for network
O. Water-proof, Dust-proof: IP66
P. Colour: Silver
Q. Dimension: 76*120*22 mm
B. Vandal resistant
C. Die-cast zinc alloy
D. Frequency: EM125KHz
E. 2-6 digits pins access
F. 12 digits backlight keypad
G. Operation Voltage: 12~24 VAC or VDC
H. 2 relays output NO /COM/NC and isolate peaker output.
I. Strike time: 0 to 99 seconds
J. Capacity: Zone1, 1000 codes or cards, or combined
Zone2, 10 codes or cards, or combined
K. 2 LED indicators: Green, Red
L. Operation temperature: -30 degree to 70 degree
M. Installation: Surface mounted
N. Cable length: 1 meter ---14-wire for stand-alone, 16-wire for network
O. Water-proof, Dust-proof: IP66
P. Colour: Silver
Q. Dimension: 76*120*22 mm
